1227450000 | Weidmüller
Socket header, 9 pole, pitch 7.62 mm, straight, black, 1227450000
Order No.: 50P9103
EAN: 4050118011586
MPN:
1227450000
BLF 7.62HP/09/180LR SN BK BX
Unit Price (€ / pc.)
13.0781 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
13.08 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0781 €
10 pcs.
12.1737 €
50 pcs.
11.0670 €
*incl. VAT plus shipping costs
Subject to prior sale

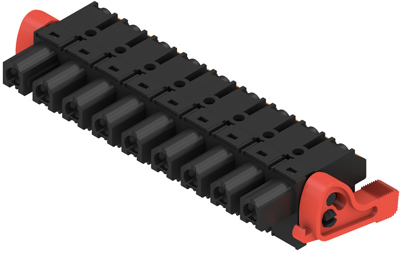

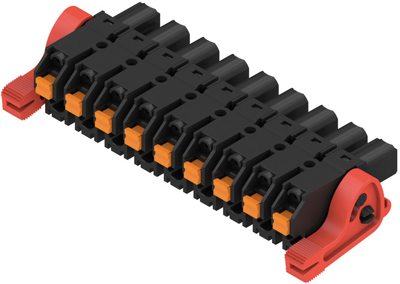

Female connector, 1227450000, Weidmüller
PCB connector, release latch, 7.62 mm, no. of poles: 9, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated current | 24 A | |
| Additional parts | equipped | |
| Version | socket header | |
| Pin number | 9 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated voltage | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
