1227350000 | Weidmüller
Socket header, 7 pole, pitch 7.62 mm, straight, black, 1227350000
Order No.: 50P9094
EAN: 4050118011487
MPN:
1227350000
BLF 7.62HP/07/180 SN BK BX
Unit Price (€ / pc.)
7.0210 € *
Standard delivery time from the manufacturer is: 7 Weeks

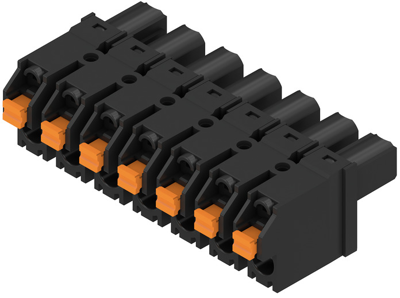

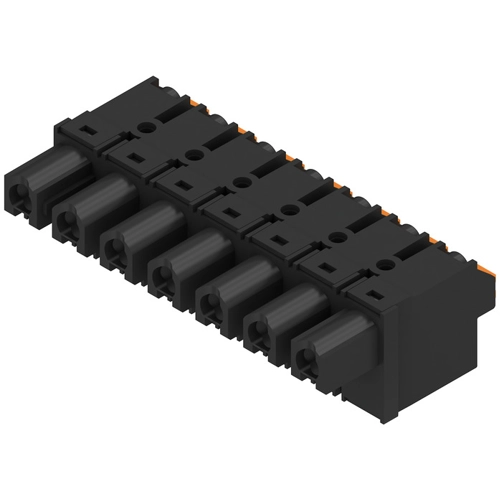

Female connector, 1227350000, Weidmüller
Printed circuit board connector, lateral closed, 7.62 mm, no. of poles: 7, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 24 A | |
| Grid | 7.62 mm | |
| Pin number | 7 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
