1205020000 | Weidmüller

Socket header, 7 pole, pitch 5 mm, straight, green, 1205020000

Order No.: 50P5243
EAN: 4032248987368
MPN:
1205020000
BLZP 5.00HC/07/180 SN GN BX

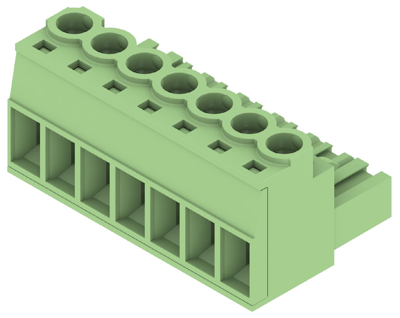

1205020000 Weidmüller PCB Connection Systems Image 1

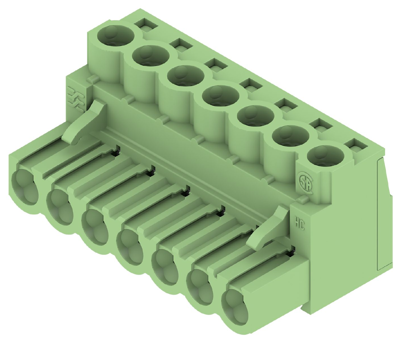

1205020000 Weidmüller PCB Connection Systems Image 2

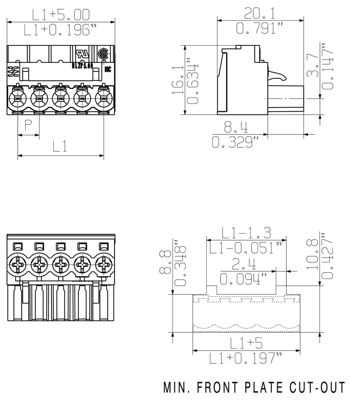

1205020000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.1408 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
5.14 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1408 €
10 pcs.
4.7957 €
50 pcs.
4.4863 €
100 pcs.
4.2126 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1205020000, Weidmüller

Female plug with clamping-yoke screw system for connecting wires with straight (180°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour green
Connection pull-bar connection
Rated current 23 A
Orientation straight
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5 mm
Number of rows 1
Pin number 7 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
