1173520000 | Weidmüller

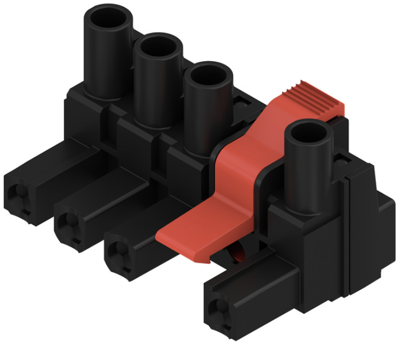

Socket header, 4 pole, pitch 7.62 mm, straight, black, 1173520000
Order No.: 50P7772
EAN: 4032248966080
MPN:
1173520000
BLZ 7.62IT/04/180MF2 SN BK BX
Unit Price (€ / pc.)
4.4625 € *
Available in 6 Days: 200 pcs. - if ordered today
Female connector, 1173520000, Weidmüller
PCB Connector, center flange, 7.62 mm, no. of poles: 4, tin-plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | screw connection | |
| Rated voltage | 630 V | |
| Number of rows | 1 | |
| Orientation | straight | |
| Rated current | 29 A | |
| Grid | 7.62 mm | |
| Pin number | 4 pole | |
| Contact type | socket | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Colour | black | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
