1167130000 | Weidmüller

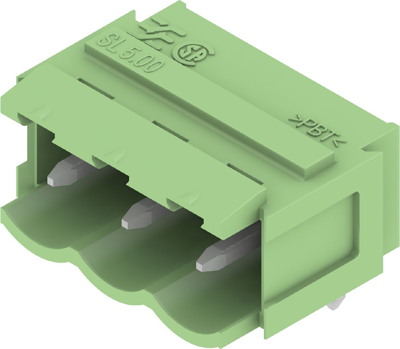

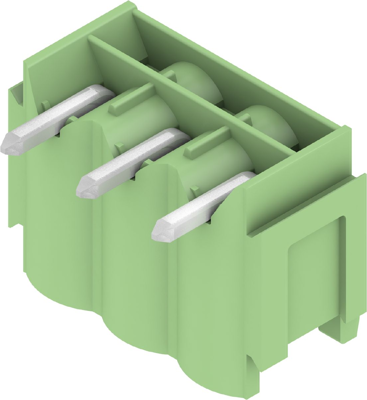

Pin header, 3 pole, pitch 5 mm, angled, green, 1167130000
Order No.: 50P3084
EAN: 4032248958429
MPN:
1167130000
SL 5.00/03/90B 3.2SN GN BX
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7854 €
50 pcs.
0.7378 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1167130000, WEIDMÜLLER
PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.00 mm, Number of poles: 3, 90°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Grid | 5 mm | |
| Number of rows | 1 | |
| contact surface | tin-plated | |
| Rated current | 18 A | |
| Connection | solder connection | |
| Version | pin header | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Contact type | pin | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
