1164870000 | Weidmüller
Socket header, 6 pole, pitch 7.62 mm, straight, orange, 1164870000
Order No.: 50P7530
EAN: 4032248954285
MPN:
1164870000
BLZ 7.62HP/06/180LR SN OR BX
Unit Price (€ / pc.)
8.9726 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
8.97 € *
Price list
Quantity
Price per unit*
1 pcs.
8.9726 €
10 pcs.
8.2467 €
50 pcs.
7.5089 €
100 pcs.
6.7711 €
*incl. VAT plus shipping costs
Subject to prior sale

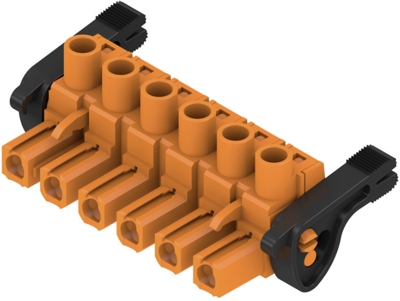

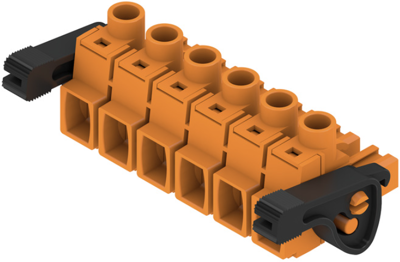

Female connector, 1164870000, Weidmüller
PCB connectors, release latch, 7.62 mm, no. of poles: 6, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 29 A | |
| Grid | 7.62 mm | |
| Pin number | 6 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
