1157290000 | Weidmüller

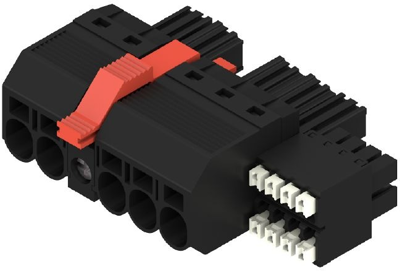

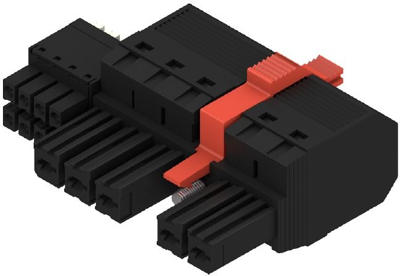

Socket header, 5 pole, pitch 7.62 mm, straight, black, 1157290000
Order No.: 50P7415
EAN: 4032248944811
MPN:
1157290000
BVF 7.62HP/05/180MSF3 BCF/08R SN BK BX
Unit Price (€ / pc.)
11.8881 € *
Standard delivery time from the manufacturer is: 10 Weeks
Female connector, 1157290000, Weidmüller
Printed circuit board connectors, closed side / center screw flange, 7.62 mm, no. of poles: 5, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 38 A | |
| Grid | 7.62 mm | |
| Pin number | 5 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
