1157230000 | Weidmüller

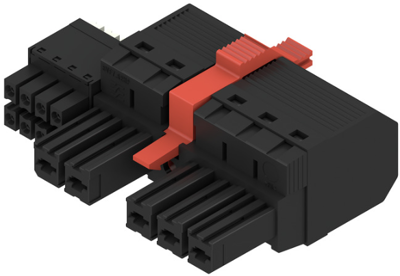

Socket header, 5 pole, pitch 7.62 mm, straight, black, 1157230000
Order No.: 50P7410
EAN: 4032248944484
MPN:
1157230000
BVF 7.62HP/05/180MF3 BCF/06R SN BK BX
Unit Price (€ / pc.)
10.4363 € *
Standard delivery time from the manufacturer is: 10 Weeks
Female connector, 1157230000, Weidmüller
PCB connectors, center flange, 7.62 mm, no. of poles: 5, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 38 A | |
| Grid | 7.62 mm | |
| Pin number | 5 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
