1156900000 | Weidmüller

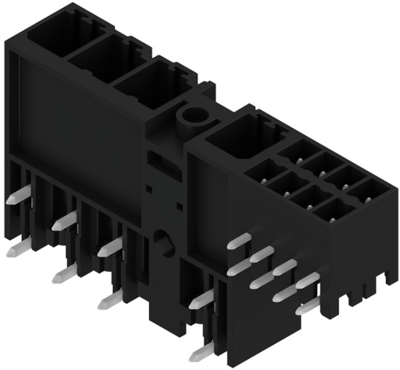

Pin header, 4 pole, pitch 7.62 mm, angled, black, 1156900000
Order No.: 50P7384
EAN: 4032248944170
MPN:
1156900000
SV 7.62HP/04/90MSF4 SC/08R SN BK BX
Unit Price (€ / pc.)
7.9016 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
7.90 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9016 €
10 pcs.
7.3542 €
50 pcs.
6.6878 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1156900000, Weidmüller
Board Connector, lateral closed, center screw flange, THT solder termination, 7.62 mm, no. of poles: 4, 90°, 3.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 41 A | |
| Grid | 7.62 mm | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
