1156570000 | Weidmüller
Pin header, 3 pole, pitch 7.62 mm, angled, black, 1156570000
Order No.: 50P7359
EAN: 4032248943296
MPN:
1156570000
SV 7.62IT/03/90MF3 3.5SN BK BX
Unit Price (€ / pc.)
3.7842 € *
Available: 0 pcs.
Available in 6 Days: 120 pcs.
Leadtime: On Request **
Total Price:
3.78 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7842 €
10 pcs.
3.5224 €
50 pcs.
3.1773 €
*incl. VAT plus shipping costs
**Subject to prior sale

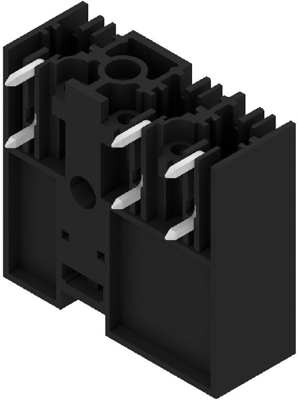

Male connector, 1156570000, Weidmüller
PCB connectors, closed sideways, center flange, THT solder termination, 7.62 mm, no. of poles: 3, 90°, 3.5 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 41 A | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
