1156320000 | Weidmüller

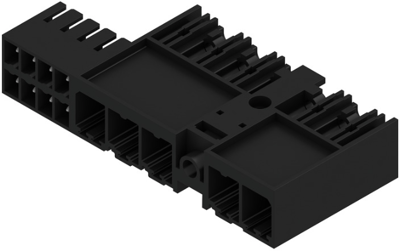

Pin header, 5 pole, pitch 7.62 mm, angled, black, 1156320000
Order No.: 50P7342
EAN: 4032248943180
MPN:
1156320000
SV 7.62HP/05/270MF3 SC/08R SN BK BX
Unit Price (€ / pc.)
6.3665 € *
Standard delivery time from the manufacturer is: 4 Weeks
Male connector, 1156320000, Weidmüller
Printed Circuit Board Connector, closed side, center flange, THT solder termination, 7.62 mm, no. of poles: 5, 270°, 3.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 41 A | |
| Grid | 7.62 mm | |
| Pin number | 5 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
