1156270000 | Weidmüller

Pin header, 3 pole, pitch 7.62 mm, angled, black, 1156270000

Order No.: 50P7337
EAN: 4032248943166
MPN:
1156270000
SV 7.62HP/03/90MSF2 SC/06R SN BK BX

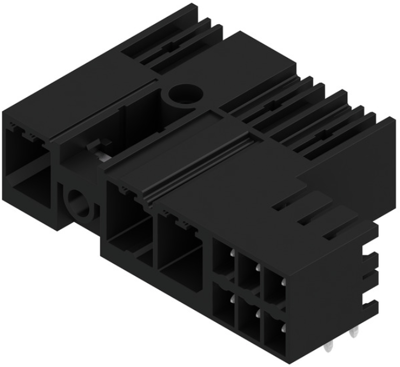

1156270000 Weidmüller PCB Connection Systems Image 1

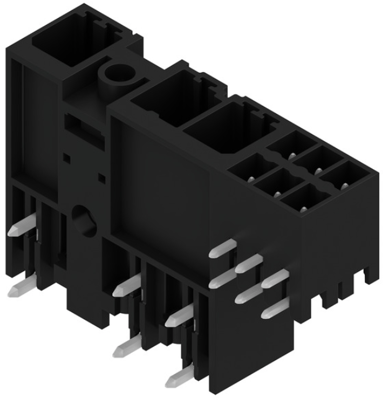

1156270000 Weidmüller PCB Connection Systems Image 2

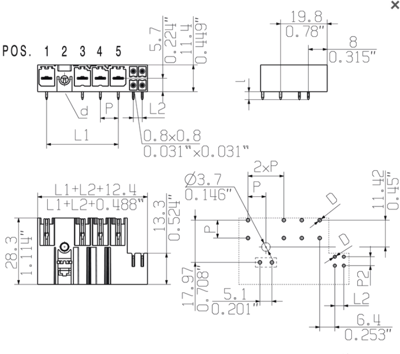

1156270000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.4506 € *
Available: 41 pcs.
Total Price:
4.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.4506 €

Male connector, 1156270000, Weidmüller

PCB connectors, closed sideways, center screw flange, THT solder termination, 7.62 mm, no. of poles: 3, 90°, 3.5 mm, tinned, black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Colour black
contact surface tin-plated
Rated current 41 A
Grid 7.62 mm
Pin number 3 pole
Version pin header
Additional parts equipped
Orientation angled
Connection PCB connection
Contact type pin
Rated voltage 1 kV
Number of rows 1
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
