1155730000 | Weidmüller

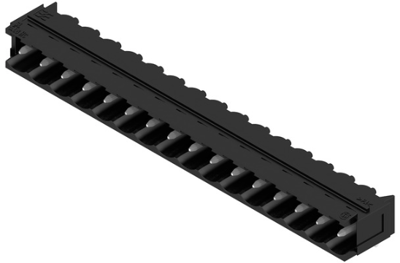

Pin header, 16 pole, pitch 5.08 mm, angled, black, 1155730000
Order No.: 50P7307
EAN: 4050118050219
MPN:
1155730000
SL 5.08HC/16/90B 3.2SN BK BX
Unit Price (€ / pc.)
4.5815 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.58 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5815 €
10 pcs.
4.2126 €
50 pcs.
3.8318 €
100 pcs.
3.4510 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1155730000, Weidmüller
Printed Circuit Board Connector, Male Connector, Dovetails for Mounting Blocks, THT Solder Termination, 5.08 mm, Poles: 16, 90°, 3.2 mm, tin plated.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 16 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
