1155700000 | Weidmüller

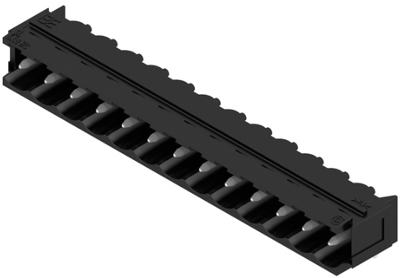

Pin header, 13 pole, pitch 5.08 mm, angled, black, 1155700000
Order No.: 50P7304
EAN: 4050118050240
MPN:
1155700000
SL 5.08HC/13/90B 3.2SN BK BX
Unit Price (€ / pc.)
3.7247 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
3.72 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7247 €
10 pcs.
3.4272 €
50 pcs.
3.1178 €
100 pcs.
2.8084 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1155700000, Weidmüller
Printed Circuit Board Connector, Male Connector, Dovetails for Mounting Blocks, THT Solder Termination, 5.08 mm, Pole Number: 13, 90°, 3.2 mm, Tin Plated.
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Colour | black | |
| Pin number | 13 pole | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Contact type | pin | |
| Rated current | 24 A | |
| contact surface | tin-plated | |
| Orientation | angled | |
| Grid | 5.08 mm | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
