1150450000 | Weidmüller
Pin header, 12 pole, pitch 5.08 mm, angled, black, 1150450000
Order No.: 50P7187
EAN: 4032248936779
MPN:
1150450000
SL 5.08HC/12/90LF 3.2SN BK BX
Unit Price (€ / pc.)
4.1412 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
4.14 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1412 €
10 pcs.
3.8556 €
50 pcs.
3.4867 €
*incl. VAT plus shipping costs
**Subject to prior sale

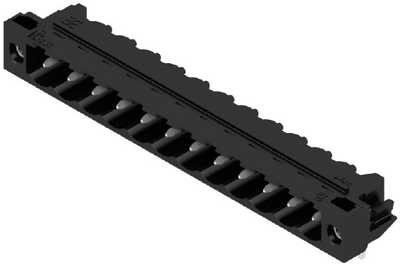

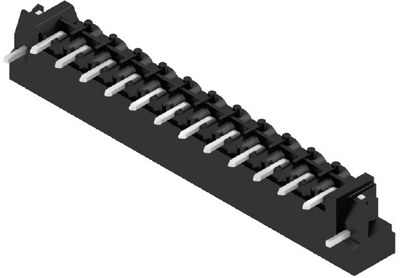

Male connector, 1150450000, Weidmüller
Printed circuit board connector, male connector, solder flange, THT solder termination, 5.08 mm, no. of poles: 12, 90°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 24 A | |
| Orientation | angled | |
| Pin number | 12 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
