1150320000 | Weidmüller

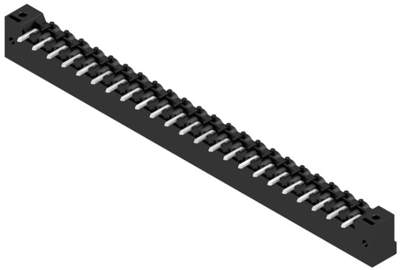

Pin header, 23 pole, pitch 5.08 mm, angled, black, 1150320000
Order No.: 50P7175
EAN: 4032248937226
MPN:
1150320000
SL 5.08HC/23/90F 3.2SN BK BX
Unit Price (€ / pc.)
7.0329 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
7.03 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0329 €
10 pcs.
6.5450 €
50 pcs.
5.9619 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1150320000, Weidmüller
Printed Circuit Board Connector, Male Connector, Flange, THT Solder Termination, 5.08 mm, No. of Poles: 23, 90°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 23 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
