1149410000 | Weidmüller

Pin header, 3 pole, pitch 5.08 mm, angled, orange, 1149410000

Order No.: 50P7092
EAN: 4032248936700
MPN:
1149410000
SL 5.08HC/03/90LF 3.2SN OR BX

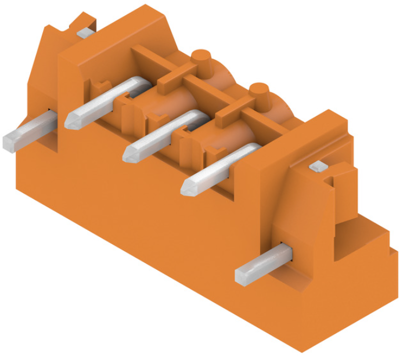

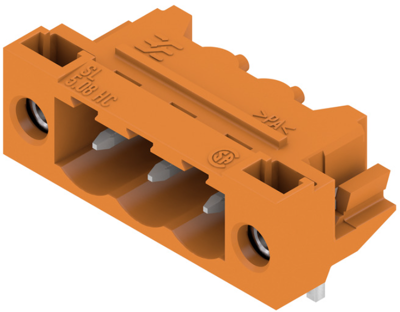

1149410000 Weidmüller PCB Connection Systems Image 1
1149410000 Weidmüller PCB Connection Systems Image 2
1149410000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.7374 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.74 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7374 €
10 pcs.
1.5827 €
50 pcs.
1.4042 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1149410000, Weidmüller

PCB Connector, Male Connector, Solder Flange, THT Solder Termination, 5.08 mm, No. of Poles: 3, 90°, 3.2 mm, Tin Plated, Orange, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated current 24 A
Additional parts equipped
contact surface tin-plated
Version pin header
Orientation angled
Grid 5.08 mm
Number of rows 1
Contact type pin
Colour orange
Pin number 3 pole
Connection PCB connection
Rated voltage 400 V
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
