1148740000 | Weidmüller

Pin header, 6 pole, pitch 5.08 mm, angled, orange, 1148740000

Order No.: 50P7031
EAN: 4032248935789
MPN:
1148740000
SL 5.08HC/06/90F 3.2SN OR BX

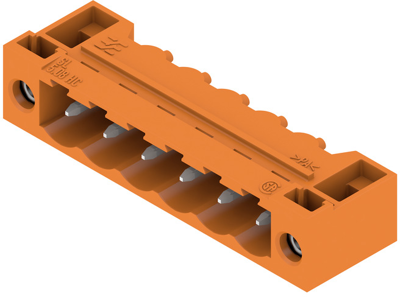

1148740000 Weidmüller PCB Connection Systems Image 1

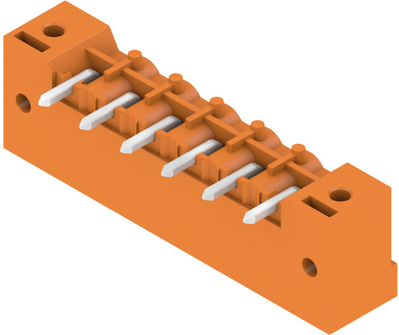

1148740000 Weidmüller PCB Connection Systems Image 2
1148740000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.4395 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4395 €
10 pcs.
2.2610 €
50 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1148740000, Weidmüller

Printed circuit board connector, male connector, flange, THT solder termination, 5.08 mm, no. of poles: 6, 90°, 3.2 mm, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Pin number 6 pole
Number of rows 1
Colour orange
Rated current 24 A
contact surface tin-plated
Connection PCB connection
Orientation angled
Additional parts equipped
Rated voltage 400 V
Contact type pin
Grid 5.08 mm
Version pin header
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
