1148640000 | Weidmüller

Pin header, 3 pole, pitch 5.08 mm, angled, orange, 1148640000

Order No.: 50P7022
EAN: 4032248935987
MPN:
1148640000
SL 5.08HC/03/90F 3.2SN OR BX
Weidmüller

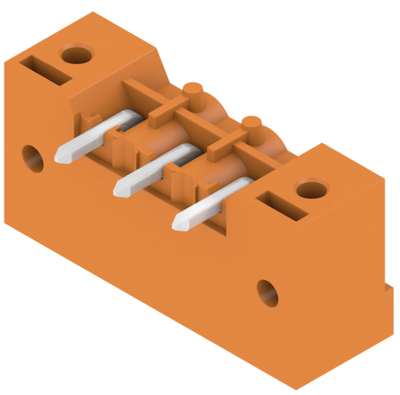

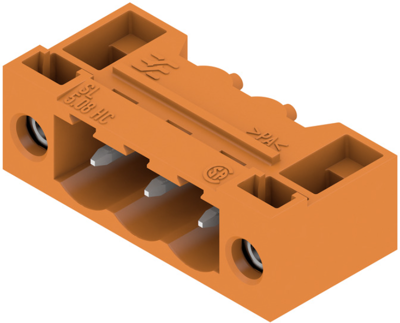

1148640000 Weidmüller PCB Connection Systems Image 1
1148640000 Weidmüller PCB Connection Systems Image 2
1148640000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
1.5351 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.3685 €
50 pcs.
1.2376 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 1148640000, Weidmüller

Printed Circuit Board Connector, Male Connector, Flange, THT Solder Termination, 5.08 mm, No. of Poles: 3, 90°, 3.2 mm, Tin Plated, Orange, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection PCB connection
Number of rows 1
Version pin header
Additional parts equipped
Colour orange
Contact type pin
contact surface tin-plated
Rated voltage 400 V
Rated current 24 A
Orientation angled
Pin number 3 pole
Grid 5.08 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
