1148130000 | Weidmüller

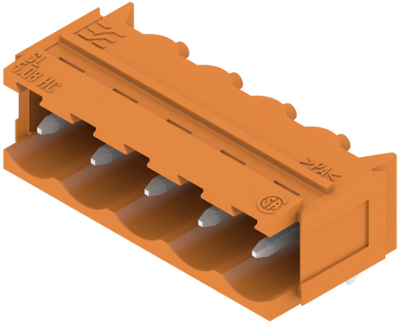

Pin header, 5 pole, pitch 5.08 mm, angled, orange, 1148130000
Order No.: 50P6975
EAN: 4050118051018
MPN:
1148130000
SL 5.08HC/05/90B 3.2SN OR BX
Unit Price (€ / pc.)
1.4399 € *
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.3209 €
50 pcs.
1.2019 €
100 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1148130000, Weidmüller
PCB connectors, male header, dovetails for mounting blocks, THT solder termination, 5.08 mm, no. of poles: 5, 90°, 3.2 mm, tin plated, orange
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| contact surface | tin-plated | |
| Connection | PCB connection | |
| Number of rows | 1 | |
| Colour | orange | |
| Contact type | pin | |
| Additional parts | equipped | |
| Rated current | 24 A | |
| Rated voltage | 400 V | |
| Pin number | 5 pole | |
| Orientation | angled | |
| Version | pin header | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
