1147590000 | Weidmüller

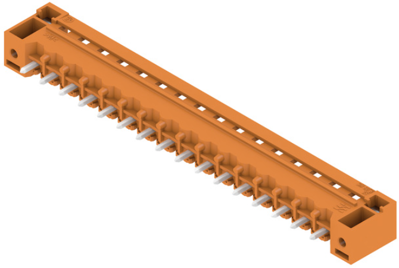

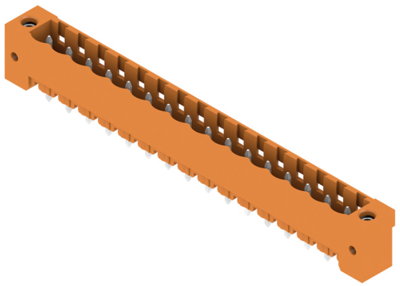

Pin header, 16 pole, pitch 5.08 mm, straight, orange, 1147590000
Order No.: 50P6926
EAN: 4032248931521
MPN:
1147590000
SL 5.08HC/16/180F 3.2SN OR BX
Unit Price (€ / pc.)
5.1170 € *
Available in 6 Days: 90 pcs. - if ordered today
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1170 €
10 pcs.
4.7600 €
50 pcs.
4.3197 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1147590000, Weidmüller
Printed Circuit Board Connector, Male Connector, Flange, THT Solder Termination, 5.08 mm, No. of Poles: 16, 180°, 3.2 mm, Tin Plated, Orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact type | pin | |
| Additional parts | equipped | |
| Colour | orange | |
| Rated current | 24 A | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| Pin number | 16 pole | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated voltage | 400 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
