1146750000 | Weidmüller

Pin header, 3 pole, pitch 5.08 mm, straight, orange, 1146750000

Order No.: 50P6850
EAN: 4032248108671
MPN:
1146750000
SL 5.08HC/03/180G 3.2SN OR BX

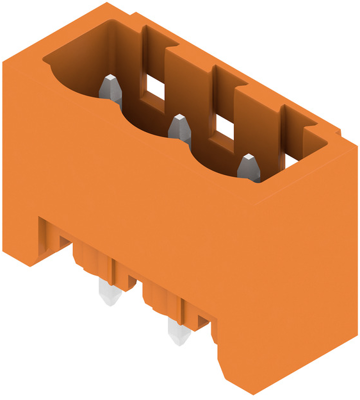

1146750000 Weidmüller PCB Connection Systems Image 1

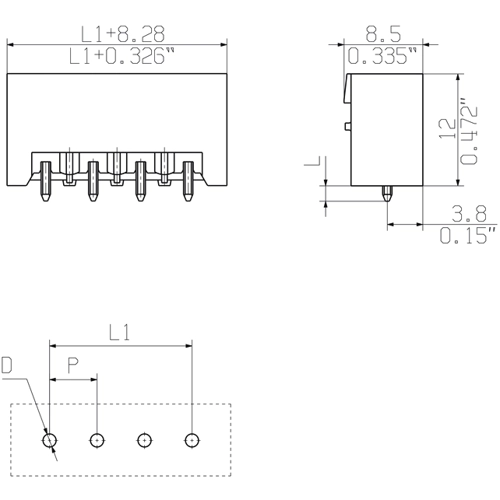

1146750000 Weidmüller PCB Connection Systems Image 2
1146750000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7973 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1146750000, Weidmüller

Printed Circuit Board Connector, male header, lateral closed, THT solder termination, 5.08 mm, no. of poles: 3, 180°, 3.2 mm, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Rated current 24 A
Rated voltage 400 V
Version pin header
Number of rows 1
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 3 pole
Grid 5.08 mm
Contact type pin
Colour orange
Connection PCB connection
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
