1141230000 | Weidmüller
Pin header, 5 pole, pitch 7.62 mm, straight, orange, 1141230000
Order No.: 50P6800
EAN: 4032248923946
MPN:
1141230000
SL 7.62HP/05/180LF 3.2 SN OR BX
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7965 €
10 pcs.
2.5942 €
50 pcs.
2.3443 €
*incl. VAT plus shipping costs
**Subject to prior sale

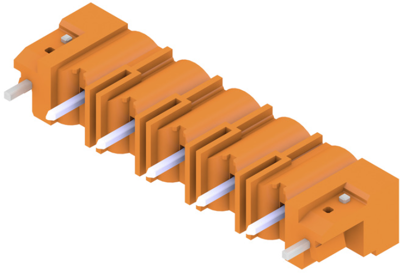

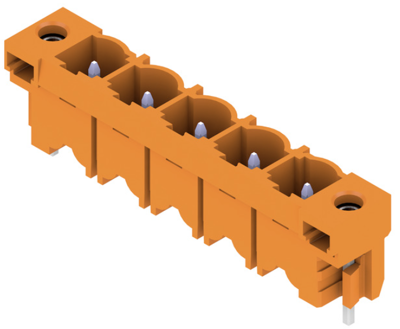

Male connector, 1141230000, Weidmüller
Printed circuit board connector, solder flange, 7.62 mm, no. of poles: 5, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 29 A | |
| Orientation | straight | |
| Pin number | 5 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
