1141180000 | Weidmüller

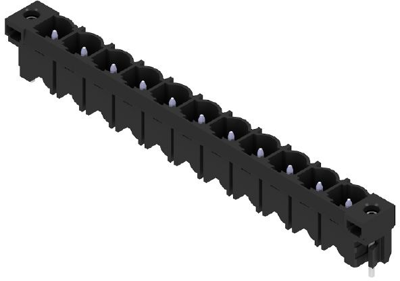

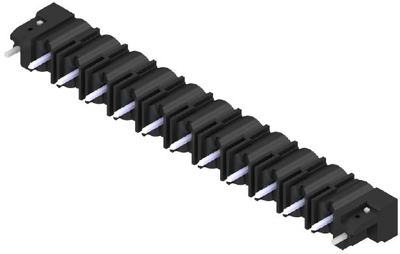

Pin header, 11 pole, pitch 7.62 mm, straight, black, 1141180000
Order No.: 50P6795
EAN: 4032248924127
MPN:
1141180000
SL 7.62HP/11/180LF 3.2 SN BK BX
Unit Price (€ / pc.)
1.8921 € *
Available in 5 Days: 90 pcs. - if ordered today
Male connector, 1141180000, Weidmüller
PCB connector, solder flange, 7.62 mm, no. of poles: 11, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 11 pole | |
| Rated voltage | 630 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated current | 29 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
