1141110000 | Weidmüller
Pin header, 4 pole, pitch 7.62 mm, straight, black, 1141110000
Order No.: 50P6788
EAN: 4032248923762
MPN:
1141110000
SL 7.62HP/04/180LF 3.2 SN BK BX
Unit Price (€ / pc.)
2.5466 € *
Available: 0 pcs.
Available in 6 Days: 84 pcs.
Leadtime: On Request **
Total Price:
2.55 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5466 €
10 pcs.
2.3681 €
50 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale

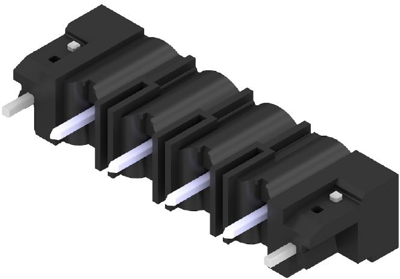

Male connector, 1141110000, Weidmüller
Printed circuit board connector, solder flange, 7.62 mm, no. of poles: 4, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 630 V | |
| Rated current | 29 A | |
| Orientation | gerade | |
| Pin number | 4-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
