1141100000 | Weidmüller
Pin header, 3 pole, pitch 7.62 mm, straight, black, 1141100000
Order No.: 50P6787
EAN: 4032248923748
MPN:
1141100000
SL 7.62HP/03/180LF 3.2 SN BK BX
Unit Price (€ / pc.)
2.1420 € *
Available: 46 pcs.
Total Price:
2.14 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1420 €
10 pcs.
1.9754 €
50 pcs.
1.7850 €
100 pcs.
1.6184 €
*incl. VAT plus shipping costs
Subject to prior sale

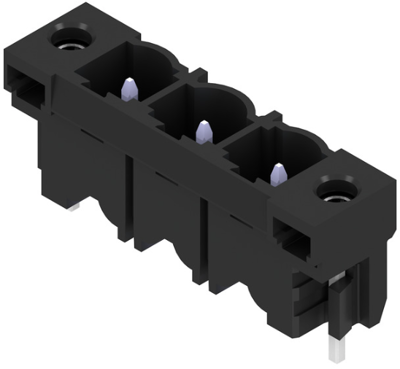

Male connector, 1141100000, Weidmüller
Printed circuit board connector, solder flange, 7.62 mm, no. of poles: 3, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 29 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 3 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated voltage | 630 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
