1141090000 | Weidmüller
Pin header, 2 pole, pitch 7.62 mm, straight, black, 1141090000
Order No.: 50P6786
EAN: 4032248923502
MPN:
1141090000
SL 7.62HP/02/180LF 3.2 SN BK BX
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6898 €
10 pcs.
1.5351 €
50 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale

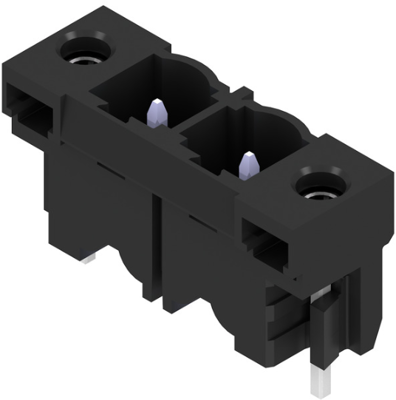

Male connector, 1141090000, Weidmüller
Printed Circuit Board Connector, solder flange, 7.62 mm, no. of poles: 2, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 29 A | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Pin number | 2 pole | |
| Orientation | straight | |
| Rated voltage | 630 V | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Colour | black | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
