1140890000 | Weidmüller

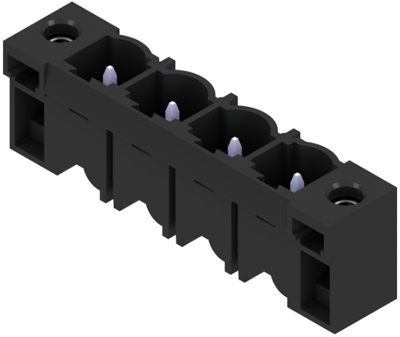

Pin header, 4 pole, pitch 7.62 mm, straight, black, 1140890000
Order No.: 50P6766
EAN: 4032248923373
MPN:
1140890000
SL 7.62HP/04/180F 3.2 SN BK BX
Unit Price (€ / pc.)
2.4276 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2372 €
50 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1140890000, Weidmüller
Printed Circuit Board Connector, flange, THT solder termination, 7.62 mm, no. of poles: 4, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 29 A | |
| Contact type | pin | |
| Colour | black | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Orientation | straight | |
| Grid | 7.62 mm | |
| Rated voltage | 630 V | |
| Pin number | 4 pole | |
| Version | pin header | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
