1134120000 | Weidmüller

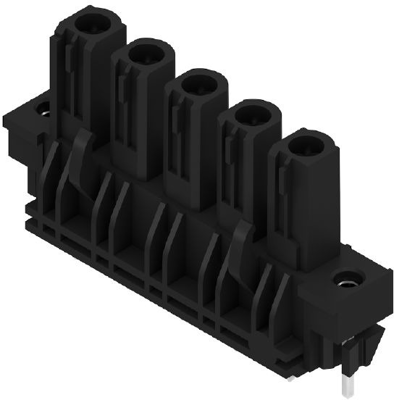

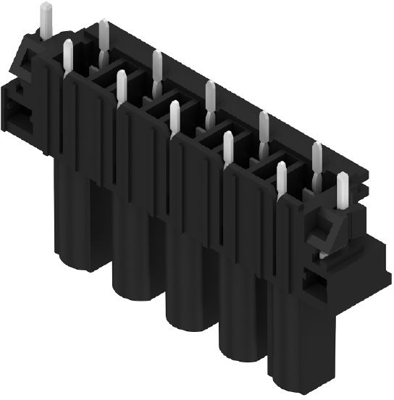

Socket header, 5 pole, pitch 7.62 mm, straight, black, 1134120000
Order No.: 50P6583
EAN: 4032248914081
MPN:
1134120000
BLL 7.62HP/05/180LF 3.2SN BK BX
Unit Price (€ / pc.)
5.3550 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
5.36 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3550 €
10 pcs.
4.9742 €
50 pcs.
4.5220 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1134120000, Weidmüller
PCB Connector, Solder Flange, 7.62 mm, No. of Poles: 5, 180°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Pin number | 5 pole | |
| Rated voltage | 630 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated current | 24 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
