1134110000 | Weidmüller

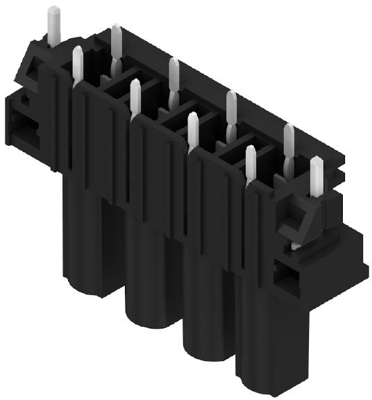

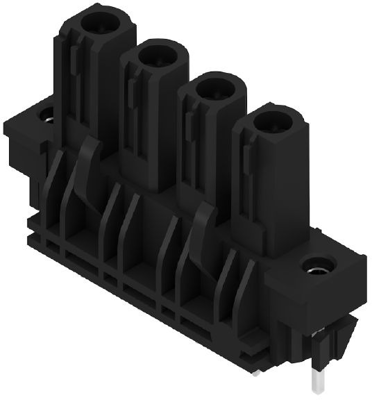

Socket header, 4 pole, pitch 7.62 mm, straight, black, 1134110000
Order No.: 50P6582
EAN: 4032248914067
MPN:
1134110000
BLL 7.62HP/04/180LF 3.2SN BK BX
Unit Price (€ / pc.)
6.8663 € *
Available in 5 Days: 126 pcs. - if ordered today
Female connector, 1134110000, Weidmüller

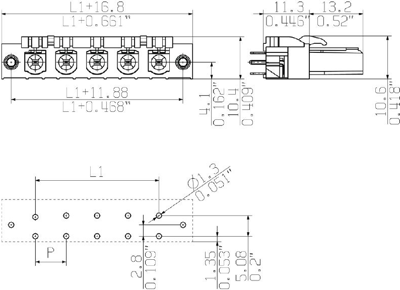

Printed Circuit Board Connector, solder flange, 7.62 mm, no. of poles: 4, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Grid | 7.62 mm | |
| Rated voltage | 630 V | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Orientation | straight | |
| Version | socket header | |
| Colour | black | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Pin number | 4 pole | |
| Rated current | 24 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
