1124830000 | Weidmüller
Pin header, 4 pole, pitch 7.62 mm, straight, black, 1124830000
Order No.: 50P6353
EAN: 4032248907229
MPN:
1124830000
SVF 7.62HP/04/180SFI SN BK BX
Unit Price (€ / pc.)
15.2320 € *
Available in 5 Days: 35 pcs. - if ordered today

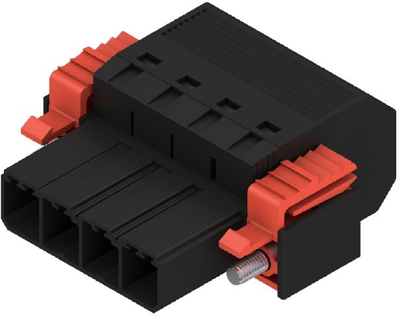

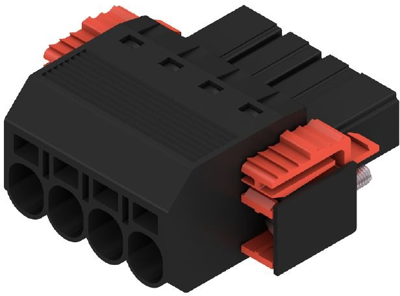

Male connector, 1124830000, Weidmüller
PCB Connector, Screw / Latching Flange Inverted, 7.62 mm, No. of Poles: 4, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Grid | 7.62 mm | |
| Rated voltage | 1 kV | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Orientation | straight | |
| Version | pin header | |
| Colour | black | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Pin number | 4 pole | |
| Rated current | 57 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
