1124370000 | Weidmüller

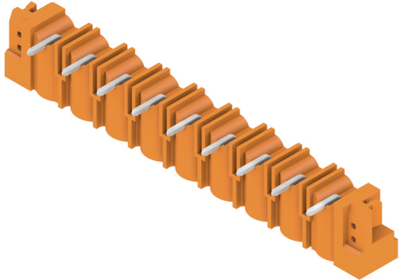

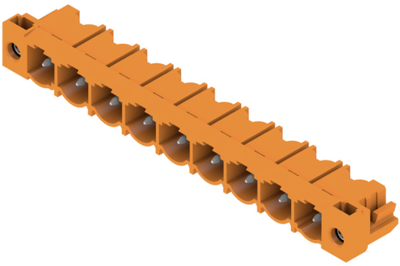

Pin header, 9 pole, pitch 7.62 mm, angled, orange, 1124370000
Order No.: 50P6342
EAN: 4032248906208
MPN:
1124370000
SL 7.62HP/09/90F 3.2 SN OR BX
Unit Price (€ / pc.)
4.5101 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
4.51 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5101 €
10 pcs.
4.2007 €
50 pcs.
3.7842 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1124370000, Weidmüller
PCB connector, flange, THT solder termination, 7.62 mm, no. of poles: 9, 90°, 3.2 mm, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 29 A | |
| Grid | 7.62 mm | |
| Pin number | 9 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
