1122570000 | Weidmüller

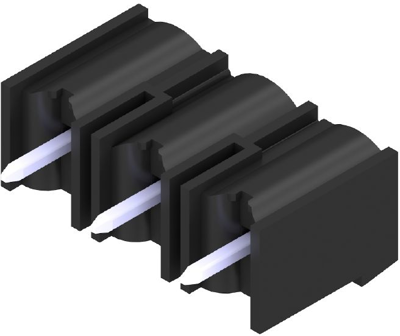

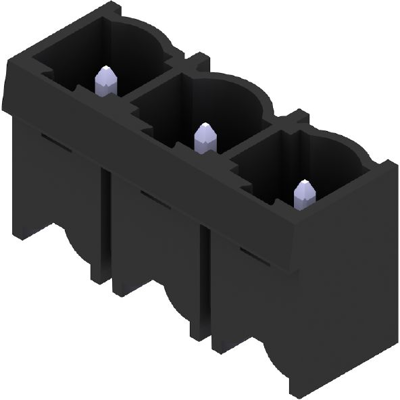

Pin header, 3 pole, pitch 7.62 mm, straight, black, 1122570000
Order No.: 50P6188
EAN: 4032248904570
MPN:
1122570000
SL 7.62HP/03/180G 3.2SN BK BX
Unit Price (€ / pc.)
1.2733 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.1781 €
50 pcs.
1.0710 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1122570000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 7.62 mm, no. of poles: 3, 180°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 630 V | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Version | pin header | |
| Colour | black | |
| Grid | 7.62 mm | |
| Rated current | 29 A | |
| Contact type | pin | |
| Number of rows | 1 | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
