1122550000 | Weidmüller

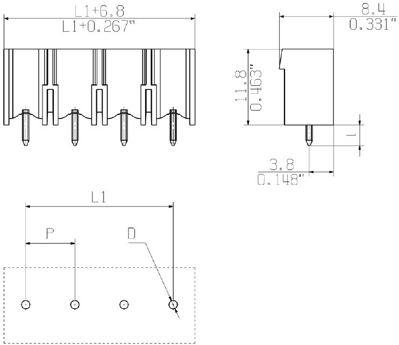

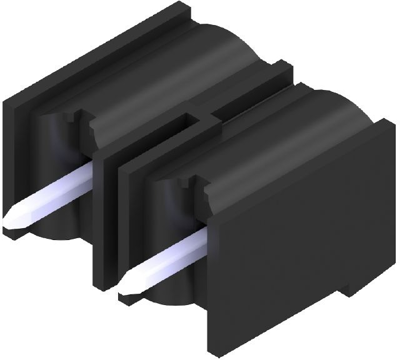

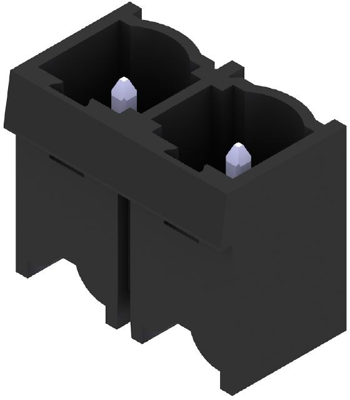

Pin header, 2 pole, pitch 7.62 mm, straight, black, 1122550000
Order No.: 50P6187
EAN: 4032248904587
MPN:
1122550000
SL 7.62HP/02/180G 3.2SN BK BX
Unit Price (€ / pc.)
0.8449 € *
Available in 6 Days: 500 pcs. - if ordered today
Total Price:
0.84 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8449 €
10 pcs.
0.7854 €
50 pcs.
0.7140 €
100 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1122550000, Weidmüller
PCB Connector, closed side, THT solder termination, 7.62 mm, no. of poles: 2, 180°, 3.2 mm, tin-plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 29 A | |
| Rated voltage | 630 V | |
| Version | pin header | |
| Number of rows | 1 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Grid | 7.62 mm | |
| Contact type | pin | |
| Colour | black | |
| Connection | PCB connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
