1122140000 | Weidmüller
Socket header, 5 pole, pitch 7.62 mm, straight, black, 1122140000
Order No.: 50P6184
EAN: 4032248903290
MPN:
1122140000
BLL 7.62HP/05/180F 3.2SN BK BX
Unit Price (€ / pc.)
5.2241 € *
Available: 0 pcs.
Available in 6 Days: 72 pcs.
Leadtime: On Request **
Total Price:
5.22 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2241 €
10 pcs.
4.8671 €
50 pcs.
4.4268 €
*incl. VAT plus shipping costs
**Subject to prior sale

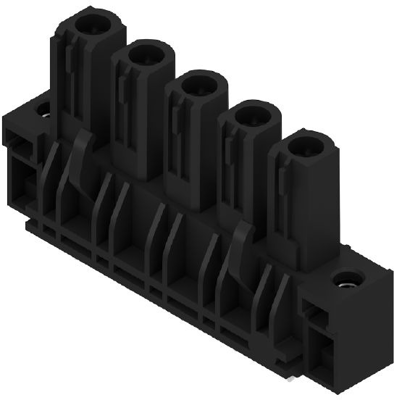

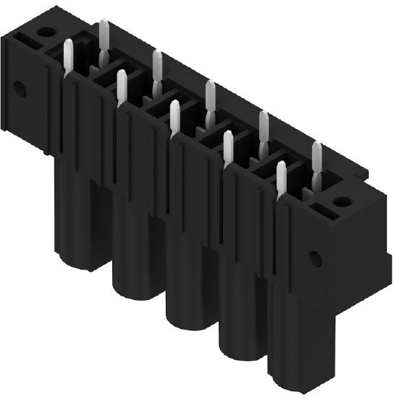

Female connector, 1122140000, Weidmüller

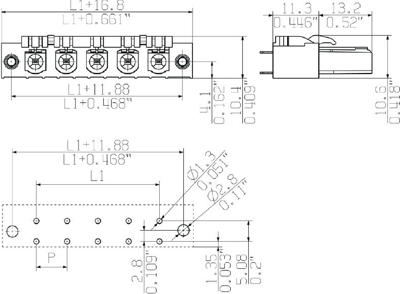

PCB connector, flange, THT solder termination, 7.62 mm, no. of poles: 5, 180°, 3.2 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
