1102270000 | Weidmüller

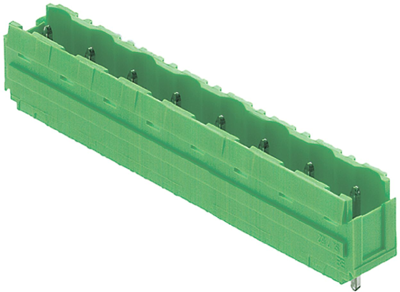

Pin header, 7 pole, pitch 7.62 mm, straight, green, 1102270000
Order No.: 50P0824
EAN: 4032248876730
MPN:
1102270000
SL 7.62/07/180B 3.2SN GN BX
Series: OMNIMATE SIGNAL BL/SL 7.62
Unit Price (€ / pc.)
2.3086 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
10 pcs.
2.1539 €
50 pcs.
2.0230 €
100 pcs.
1.9040 €
*incl. VAT plus shipping costs
Subject to prior sale
Male header, 1102270000, Weidmüller
PCB plug-in connector, male header, Flange, THT solder connection, 7.62 mm, Number of poles: 5, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Rated current | 18.5 A | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Number of rows | 1 | |
| Rated voltage | 800 V | |
| Pin number | 7 pole | |
| Version | pin header | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
