1102250000 | Weidmüller
Pin header, 5 pole, pitch 7.62 mm, straight, green, 1102250000
Order No.: 50P0821
EAN: 4032248877089
MPN:
1102250000
SL 7.62/05/180B 3.2SN GN BX
Series: OMNIMATE SIGNAL BL/SL 7.62
Unit Price (€ / pc.)
1.6422 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
10 pcs.
1.5351 €
50 pcs.
1.4518 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale

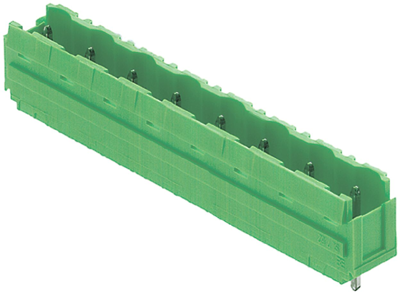

Male header, 1102250000, Weidmüller
Male connector with straight outlet direction. The solder pin length is optimised for wave flow soldering. The pin header provides space for labelling and can be coded.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 5 pole | |
| Rated voltage | 800 V | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Connection | solder connection | |
| Rated current | 18.5 A | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
