1100000000 | Weidmüller
Pin header, 5 pole, pitch 7.62 mm, straight, green, 1100000000
Order No.: 50P0820
EAN: 4032248875108
MPN:
1100000000
SL 7.62/05/180 3.2SN GN BX
Series: OMNIMATE SIGNAL BL/SL 7.62
Unit Price (€ / pc.)
1.6422 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
1.64 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6422 €
10 pcs.
1.5351 €
50 pcs.
1.4518 €
100 pcs.
1.3685 €
*incl. VAT plus shipping costs
Subject to prior sale

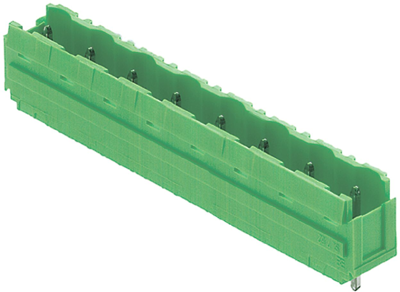

Male header, 1100000000, Weidmüller
Male connector with straight outlet direction. The solder pin length is optimised for wave flow soldering. The pin header provides space for labelling and can be coded.

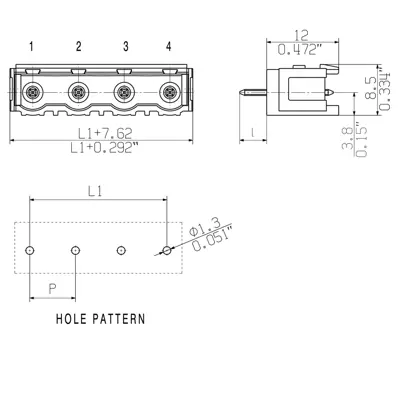

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 5 pole | |
| Grid | 7.62 mm | |
| Connection | solder connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 800 V | |
| Rated current | 18.5 A | |
| Number of rows | 1 | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
