1095960000 | Weidmüller
Pin header, 6 pole, pitch 7.62 mm, angled, black, 1095960000
Order No.: 50P5681
EAN: 4032248957453
MPN:
1095960000
SL 7.62HP/06/90LF 3.2 SN BK BX
Unit Price (€ / pc.)
3.3915 € *
Available in 6 Days: 150 pcs. - if ordered today
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.1416 €
50 pcs.
2.8441 €
*incl. VAT plus shipping costs
Subject to prior sale

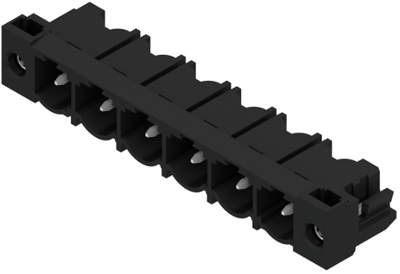

Male connector, 1095960000, Weidmüller
Printed Circuit Board Connector, Solder Flange, THT Solder Termination, 7.62 mm, Pole Number: 6, 90°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 6 pole | |
| Rated voltage | 630 V | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated current | 29 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
