1095650000 | Weidmüller
Socket header, 3 pole, pitch 7.62 mm, angled, black, 1095650000
Order No.: 50P5674
EAN: 4032248868544
MPN:
1095650000
BLL 7.62HP/03/90LF 3.2SN BK BX
Unit Price (€ / pc.)
3.7009 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.70 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7009 €
10 pcs.
3.4391 €
50 pcs.
3.0821 €
*incl. VAT plus shipping costs
Subject to prior sale

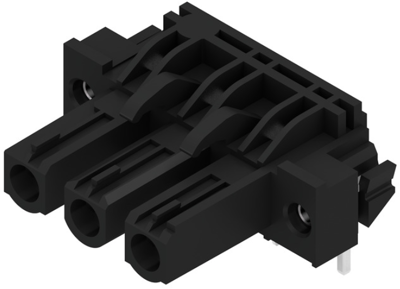

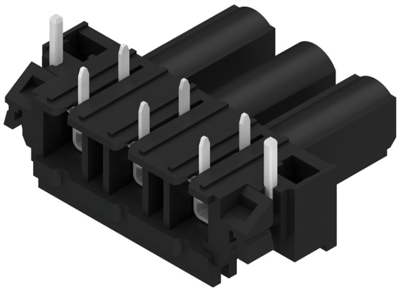

Female connector, 1095650000, Weidmüller
Printed circuit board connector, solder flange, THT solder termination, 7.62 mm, no. of poles: 3, 90°, 3.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Pin number | 3 pole | |
| Rated voltage | 630 V | |
| Orientation | angled | |
| Contact type | socket | |
| Grid | 7.62 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated current | 24 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
