1091010000 | Weidmüller

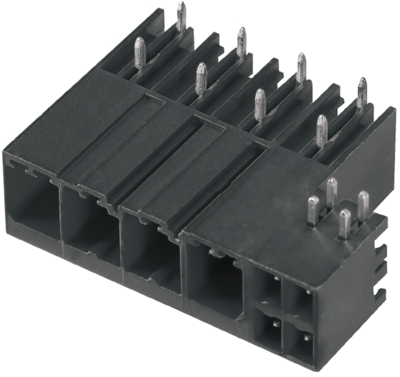

Pin header, 3 pole, pitch 7.62 mm, angled, black, 1091010000
Order No.: 50P5438
EAN: 4032248859566
MPN:
1091010000
SV 7.62HP/03/270G SC/06R SN BK BX
Unit Price (€ / pc.)
3.9746 € *
Standard delivery time from the manufacturer is: 4 Weeks
Male connector, 1091010000, Weidmüller
Board Connector, lateral closed, THT solder termination, 7.62 mm, no. of poles: 3, 270°, 3.5 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 57 A | |
| Grid | 7.62 mm | |
| Pin number | 3 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 1 kV | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
