1089280000 | Weidmüller

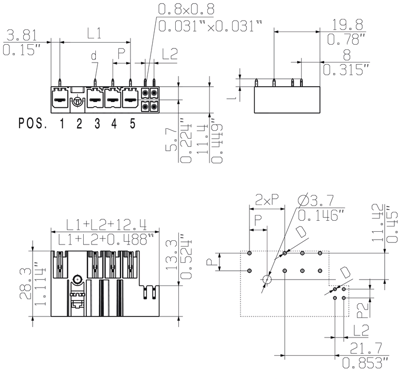

Pin header, 2 pole, pitch 7.62 mm, angled, black, 1089280000
Order No.: 50P5396
EAN: 4032248861330
MPN:
1089280000
SV 7.62HP/02/270MF2 SC/06R SN BK BX
Unit Price (€ / pc.)
2.0468 € *
Available in 5 Days: 144 pcs. - if ordered today

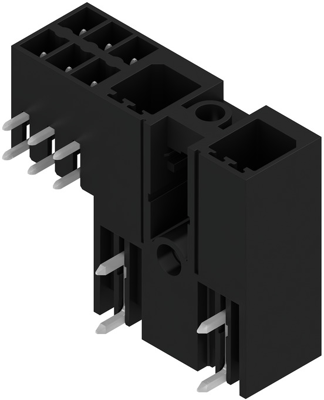

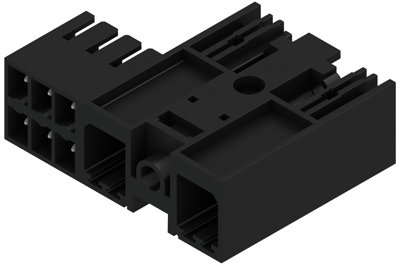

Male connector, 1089280000, Weidmüller
Printed Circuit Board Connector, lateral closed, center flange, THT solder termination, 7.62 mm, no. of poles: 2, 270°, 3.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 7.62 mm | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated current | 41 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 2 pole | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | black | |
| Rated voltage | 1 kV |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
