1087320000 | Weidmüller

Socket header, 9 pole, pitch 5.08 mm, angled, orange, 1087320000

Order No.: 50P5587
EAN: 4032248853953
MPN:
1087320000
BLZP 5.08HC/09/90LR SN OR BX

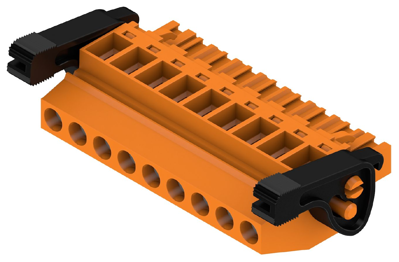

1087320000 Weidmüller PCB Connection Systems Image 1

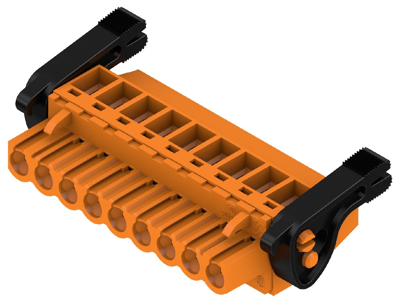

1087320000 Weidmüller PCB Connection Systems Image 2

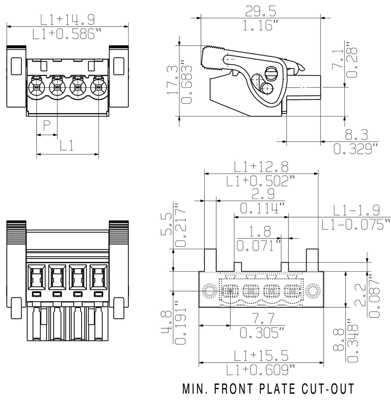

1087320000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.1519 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
7.15 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1519 €
10 pcs.
6.6640 €
50 pcs.
6.2356 €
100 pcs.
5.8667 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1087320000, Weidmüller

Female plug with clamping-yoke connection for connecting wire with a right-angle (90° or 270°) outlet direction. The female connector provides space for labelling and can be coded. Fastened by means of a flange or release latch. It also provides an integrated plus/minus screw, protection against faulty insertion of the wire, and is delivered with an open clamping yoke.

Technical specifications
Filter Property Value
Colour orange
Connection pull-bar connection
Rated current 23 A
Orientation angled
Rated voltage 400 V
contact surface tin-plated
Contact type socket
Version socket header
Grid 5.08 mm
Number of rows 1
Pin number 9 pole
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
