1069640000 | Weidmüller

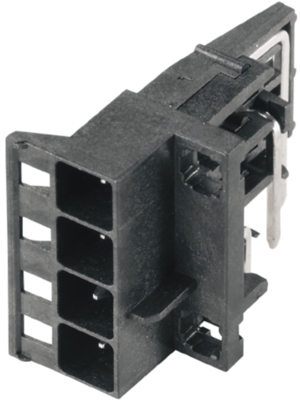

Pin header, 4 pole, pitch 5 mm, angled, black, 1069640000
Order No.: 50P4830
EAN: 4032248825080
MPN:
1069640000
SHL-SMT 5.00/04GL 4.2BX
Series: OMNIMATE Housing - Serie CH20M
Unit Price (€ / pc.)
1.8564 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1069640000, Weidmüller
Printed Circuit Board Connector, left side closed, 5.00 mm, no. of poles: 4, 90°, 4.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Contact type | pin | |
| Rated current | 10 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
