1069630000 | Weidmüller
Pin header, 3 pole, pitch 5 mm, straight, black, 1069630000
Order No.: 50P4829
EAN: 4032248824700
MPN:
1069630000
SHL-SMT 5.00/03GL 4.2BX
Series: OMNIMATE Housing - Serie CH20M
Unit Price (€ / pc.)
2.4990 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4990 €
10 pcs.
2.3205 €
50 pcs.
2.1063 €
*incl. VAT plus shipping costs
Subject to prior sale

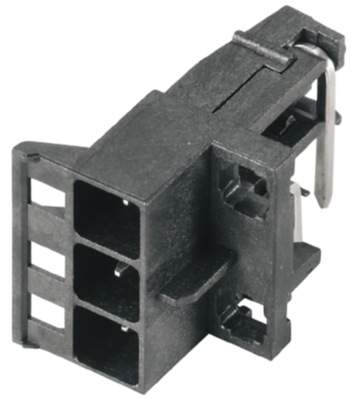

Male connector, 1069630000, Weidmüller
Printed Circuit Board Connector, left termination, 5.00 mm, no. of poles: 3, 90°, 4.2 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB connection | |
| Colour | black | |
| Additional parts | equipped | |
| Pin number | 3 pole | |
| Contact type | pin | |
| Orientation | straight | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 9 A | |
| Number of rows | 1 | |
| Grid | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
