1069610000 | Weidmüller
Pin header, 4 pole, pitch 5 mm, angled, black, 1069610000
Order No.: 50P4827
EAN: 4032248825059
MPN:
1069610000
SHL-SMT 5.00/04GR 4.2RL
Series: OMNIMATE Housing - Serie CH20M
Unit Price (€ / pc.)
2.1539 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

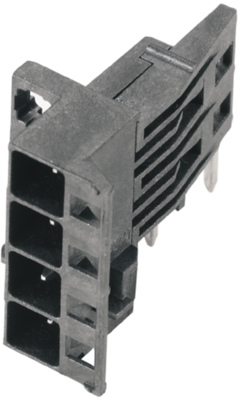

Male connector, 1069610000, Weidmüller
Printed circuit board connector, right termination, 5.00 mm, no. of poles: 4, 90°, 4.2 mm, tinned, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
