1069590000 | Weidmüller

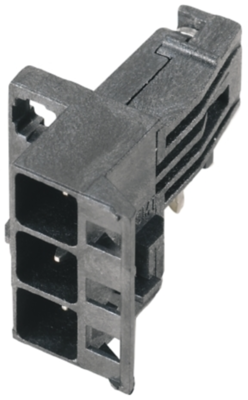

Pin header, 3 pole, pitch 5 mm, angled, black, 1069590000
Order No.: 50P4826
EAN: 4032248824670
MPN:
1069590000
SHL-SMT 5.00/03GR 4.2RL
Series: OMNIMATE Housing - Serie CH20M
Unit Price (€ / pc.)
2.2729 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1069590000, Weidmüller
Printed circuit board connector, connection element right, 5.00 mm, number of poles: 3, 90°, 4.2 mm, tinned, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 10 A | |
| Grid | 5 mm | |
| Pin number | 3 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
