1069370000 | Weidmüller

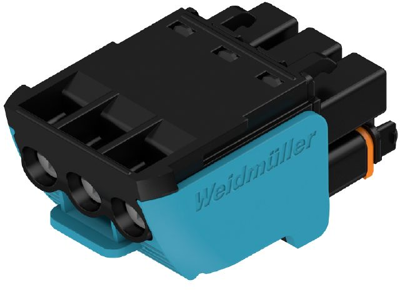

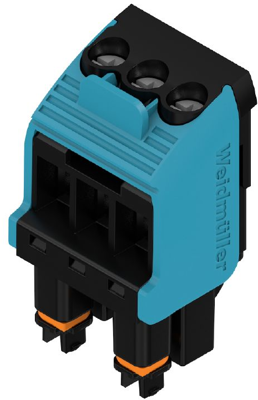

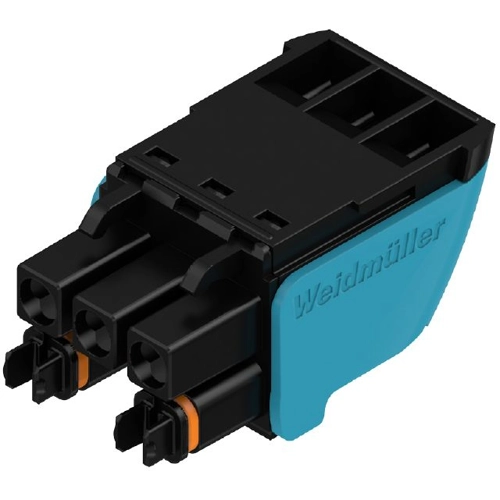

Socket header, 3 pole, pitch 5 mm, angled, black, 1069370000
Order No.: 50P4820
EAN: 4032248824953
MPN:
1069370000
BHZ 5.00/03/90LH BK/BL
Series: OMNIMATE Housing - Serie CH20M
Unit Price (€ / pc.)
2.7132 € *
Standard delivery time from the manufacturer is: 8 Weeks
Female connector, 1069370000, Weidmüller
PCB connectors, release lever blue, 5.00 mm, no. of poles: 3, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| Pin number | 3 pole | |
| Colour | black | |
| Contact type | socket | |
| Rated current | 10 A | |
| Version | socket header | |
| Connection | screw connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
