1069360000 | Weidmüller
Socket header, 2 pole, pitch 5 mm, angled, black, 1069360000
Order No.: 50P4819
EAN: 4032248824625
MPN:
1069360000
BHZ 5.00/02/90LH BK/BL
Series: OMNIMATE Housing - Serie CH20M
Unit Price (€ / pc.)
1.8564 € *
Standard delivery time from the manufacturer is: 7 Weeks

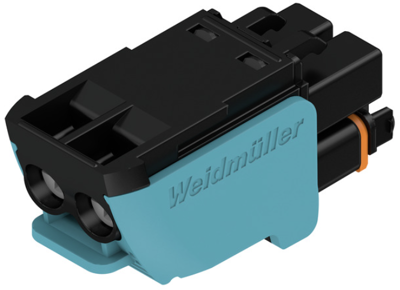

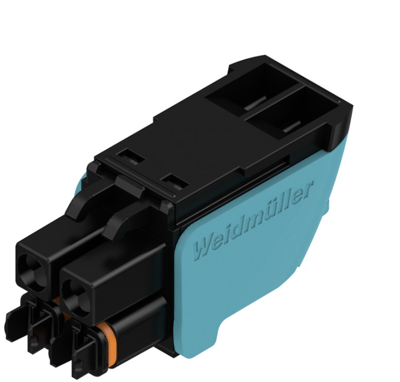

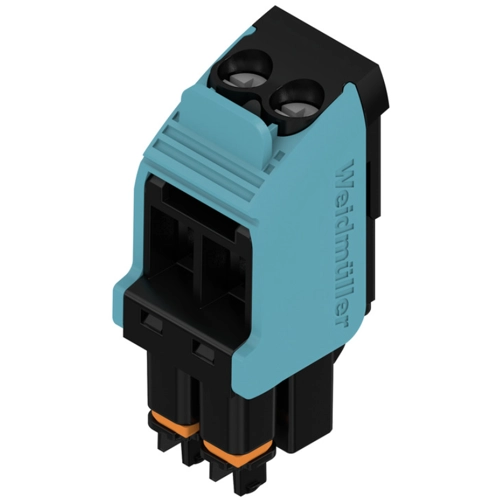

Female connector, 1069360000, Weidmüller
PCB connector, release lever blue, 5.00 mm, no. of poles: 2, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 10 A | |
| Grid | 5 mm | |
| Pin number | 2 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | screw connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
