1065180000 | Weidmüller

Pin header, 7 pole, pitch 5.08 mm, straight, orange, 1065180000

Order No.: 50P4740
EAN: 4032248818310
MPN:
1065180000
BLDF 5.08/07/180LR SN OR BX
1065180000 Weidmüller PCB Connection Systems

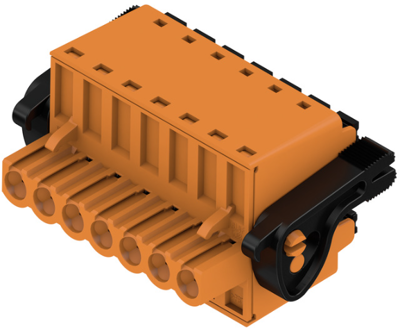

Image may differ
Unit Price (€ / pc.)
8.5561 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
8.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
8.5561 €

Male connector, 1065180000, Weidmüller

PCB connectors, male header, release latch, 5.08 mm, no. of poles: 7, tinned, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour orange
contact surface tin-plated
Rated current 20.8 A
Grid 5.08 mm
Pin number 7 pole
Version pin header
Additional parts equipped
Orientation straight
Connection push-in spring connection
Contact type pin
Rated voltage 400 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
